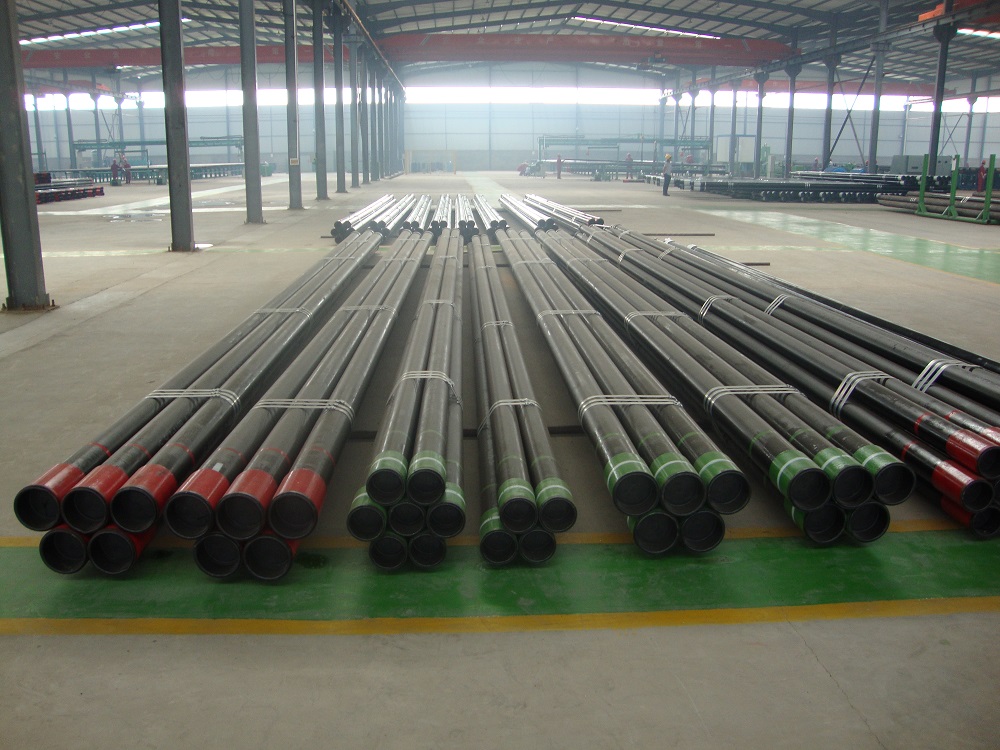

Oil Casing Tubing
Casing is a large-diameter pipe that serves as the structural retainer for the walls of oil and gas wells, or well bore. It is inserted into a well bore and cemented in place to protect both subsurface formations and the wellbore from collapsing and to allow drilling fluid to circulate and extraction to take place. Steel Casing Pipes have smooth wall & minimum yield strength of 35,000 psi. Tubing: Tubing is pipe used for the transportation of crude oil and natural gas from an oil or gas layer to the surface after drilling is complete. It is made to withstand the pressure generated from the extraction process. Tubing is manufactured in the same way as casing, except that an additional process known as “upsetting” is applied to thicken the pipes. Process: ERW and Seamless.
Standard: API 5CT
Certificate:Casing: LTC, STC, BTC, VAM.Tubing: NUE, EUE.
Product Specification
Out Diameter:Casing: OD 4 1/2”- 20” (114.3mm-508mm)
Tubing: OD 2 3/8” - 4 1/2” (60.3mm-114.30mm)
Wall Thickness:0. 205”- 0.635”
Length:R1(4.88mtr-7.62mtr), R2(7.62mtr-10.36mtr), R3(10.36mtr or longer)
Steel Grade:H-40, J55, K-55, N-80, C-75, L-80, C-90, T-95, Q-125
Surface:Corrosion proofing water based paint
End:Beveled, Square cut. And pipe protection cap especially for casing and tubing.
